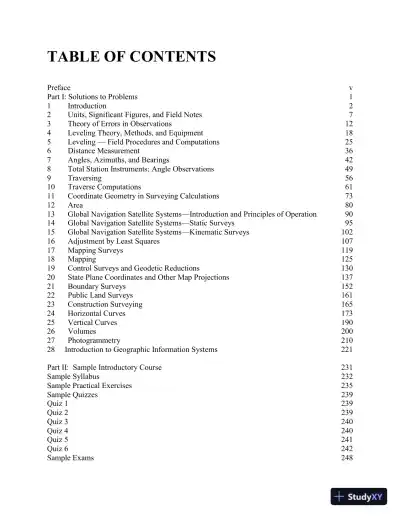

TABLE OF CONTENTS
Preface v
Part I: Solutions to Problems 1
1 Introduction 2
2 Units, Significant Figures, and Field Notes 7
3 Theory of Errors in Observations 12
4 Leveling Theory, Methods, and Equipment 18
5 Leveling — Field Procedures and Computations 25
6 Distance Measurement 36
7 Angles, Azimuths, and Bearings 42
8 Total Station Instruments; Angle Observations 49
9 Traversing 56
10 Traverse Computations 61
11 Coordinate Geometry in Surveying Calculations 73
12 Area 80
13 Global Navigation Satellite Systems—Introduction and Principles of Operation 90
14 Global Navigation Satellite Systems—Static Surveys 95
15 Global Navigation Satellite Systems—Kinematic Surveys 102
16 Adjustment by Least Squares 107
17 Mapping Surveys 119
18 Mapping 125
19 Control Surveys and Geodetic Reductions 130
20 State Plane Coordinates and Other Map Projections 137
21 Boundary Surveys 152
22 Public Land Surveys 161
23 Construction Surveying 165
24 Horizontal Curves 173
25 Vertical Curves 190
26 Volumes 200
27 Photogrammetry 210
28 Introduction to Geographic Information Systems 221
Part II: Sample Introductory Course 231
Sample Syllabus 232
Sample Practical Exercises 235
Sample Quizzes 239
Quiz 1 239
Quiz 2 239
Quiz 3 240
Quiz 4 240
Quiz 5 241
Quiz 6 242
Sample Exams 248

Solution Manual 2
Elementary Surveying: An Introduction to Geomatics
1 INTRODUCTION
NOTE: Answers for some of these problems, and some in later chapters, can be obtained by
consulting the bibliographies, later chapters, websites, or professional surveyors.
1.1 List 10 uses for surveying in areas other than boundary surveying.
Answers may vary many are included in Section 1.6, which lists control, topographic
hydrographic, alignment, construction, as-built, mine, solar, optical tooling, ground,
aerial, and satellite surveys. This list is not complete and could also include other types of
surveys such as hydrographic surveys, for example.
1.2 Explain the difference between geodetic and plane surveys.
From Section 1.4:
In geodetic surveys the curved surface of the earth is considered by performing the
computations on an ellipsoid (curve surface approximating the size and shape of the
earth). In plane surveys, except for leveling, the reference base for fieldwork and
computations is assumed to be a flat horizontal surface. The direction of a plumb line
(and thus gravity) is considered parallel throughout the survey region, and all measured
angles are presumed to be plane angles.
1.3 Describe some surveying applications in:
(a) Archeology
There are many different uses of surveying in archeology. Some include using sonar
to identify possible underground or underwater archeology sites, LiDAR to help
identify possible ancient human settlements in unexplored forest and jungles, and
traditional surveying and laser scanning to help locate artifacts in site excavations.
(b) Gas exploration
There are several stages of surveying in gas exploration, which include but are not
limited to determining anomalies in the gravity field, which identify possible gas
deposits, boundary surveys identifying properties that have mineral rights to the gas
deposits, alignment surveys for placement of pipelines to transport extracted gas.
(c) Agriculture
In agriculture, surveying is used to determine the acreage of fields, to locate lines of
constant elevation for strip farming, to track harvesting machinery to enable the size
of the harvest, and to track the position of the planting equipment to allow for precise
applications of seeds and fertilizers. The field is known as high-precision agriculture.

1.4 List some application of surveying in geology, forestry, and archeology.
Applications in each are multiple. For some in geology and archeology see the answer to
Problem 1.3 (a) and (b). Some uses of surveying in forestry identifying forest boundaries,
locating spread of diseases and insects through remote sensing, using GIS to help
inventory and keep records on resources in forested regions.
1.5 Why is it important to make accurate surveys of underground utilities?
To provide an accurate record of the locations of these utilities so they can be found if
repairs or servicing is needed, and to prevent their accidental destruction during
excavation for other projects.
1.6 Discuss the uses for topographic surveys.
Topographic surveys are used whenever elevation data is required in the end product.
Some examples include (1) creating maps for highway design; (2) creating maps for
construction surveys; (3) creating maps for flood plain delineation; (4) creating maps for
site location of buildings; and so on.
1.7 What are hydrographic surveys, and why are they important?
From Section 1.6, hydrographic surveys define shorelines and depths of lakes, streams,
oceans, reservoirs, and other bodies of water. Sea surveying is associated with port and
offshore industries and the marine environment, including measurements and marine
investigations made by ship borne personnel.
1.8 Print a view of your location using Google Earth.®
Answers will vary but should be an image in your region.
1.9 Briefly explain the procedure used by Eratosthenes in determining the Earth’s
circumference.
From Section 1.3, paragraph 8 of text: His procedure, which occurred about 200 B.C., is
illustrated in Figure 1.3. Eratosthenes had concluded that the Egyptian cities of
Alexandria and Syene were located approximately on the same meridian, and he had also
observed that at noon on the summer solstice, the sun was directly overhead at Syene.
(This was apparent because at that time of that day, the image of the sun could be seen
reflecting from the bottom of a deep vertical well there.) He reasoned that at that moment,
the sun, Syene, and Alexandria were in a common meridian plane, and if he could
measure the arc length between the two cities, and the angle it subtended at the earth's
center, he could compute the earth's circumference. He determined the angle by
measuring the length of the shadow cast at Alexandria from a tall vertical staff of known
length. The arc length was found from multiplying the number of caravan days between
Syene and Alexandria by the average daily distance traveled. From these measurements

Solution Manual 4
Elementary Surveying: An Introduction to Geomatics
Eratosthenes calculated the earth's circumference to be about 25,000 mi. Subsequent
precise geodetic measurements using better instruments, but techniques similar
geometrically to Eratosthenes', have shown his value, though slightly too large, to be
amazingly close to the currently accepted one.
1.10 Describe the steps a land surveyor would need to do when performing a boundary survey.
Briefly, the steps should include (1) preliminary walking of property with owner; (2)
courthouse research to locate deed of property and adjoiners to determine ownership,
possible easements, right-of-ways, conflicts of interest, and so on; (3) location survey of
property noting any encroachments; conflicting elements; and so on; (4) resolution of
conflicting elements between deed and survey; (5) delivery of surveying report to owner.
1.11 What is the name of the state-level professional surveying organization in your state or
region?
Answer will vary by location.
1.12 What organizations in your state furnish maps and reference data to surveyors and
engineers?
Responses will vary but some common organizations are the (1) county surveyor, (2)
register of deeds, (3) county engineer or county highway department (4) Department of
Transportation, (5) Department of Natural Resources of its equivalent, and so on.
1.13 List the legal requirements for registration as a land surveyor in your state.
Responses will vary. Contact with your licensing board can be found on the NCEES
website at http://www.ncees.org/licensure/licensing_boards/.
1.14 Briefly describe an Earth-Centered, Earth-Fixed coordinate system.
From Section 1.4 and 13.4.3, a ECEF coordinate system is an Earth-based three-
dimensional coordinate system with its origin a the mass-center of the Earth, it Z axis
aligned with the semi-minor (spin) axis of the Earth defined at some epoch, it X axis in
the plane of the equator passing through mean Greenwich meridian, and it Y axis in the
plane of the equator and creating a right-handed coordinate system. At this stage of their
introduction to surveying it should be sufficient for students to simply know that it is an
Earth-based three-dimensional coordinate system.
1.15 List the professional societies representing the geospatial industry in the
(a) United States.
There are several including AAGS, ASCE, ASPRS, GLIS, NSPS, and SaGES.
(b) Canada.
Canadian Institute of Geomatics (CIG)

Loading page 6...

(c) International.
International Federation of Surveyors (FIG)
1.15 Explain how aerial photographs and satellite images can be valuable in surveying.
Photogrammetry presently has many applications in surveying. It is used, for example, in
land surveying to compute coordinates of section corners, boundary corners, or point of
evidence that help locate these corners. Large–scale maps are made by photogrammetric
procedures for many uses, one being subdivision design. Photogrammetry is used to map
shorelines, in hydrographic surveying, to determine precise ground coordinates of points
in control surveying, and to develop maps and cross sections for route and engineering
surveys. Photogrammetry is playing an important role in developing the necessary data
for modern Land and Geographic Information Systems.
1.16 Search the Internet and define a Very Long Baseline Interferometry (VLBI) station.
Discuss why these stations are important to the geospatial industry.
VLBI stands for Very Long Baseline Interferometry. Responses will vary. These stations
provide extremely accurate locations on the surface of the Earth. The stations are used to
develop world-wide reference frameworks such as ITRF08 and thus provide a worldwide
coordinate system that links continents. They also may provide tracking information for
satellites.
1.17 Describe how a GIS can be used in flood emergency planning.
Responses will vary but may mention the capabilities of a GIS to overlay soil type and
their permeability with slopes, soil saturation, and watershed regions. A GIS can also be
used to provide a list of business and residences that will be affected by possible flooding
for evacuation purposes. It can provide “best” routes out of a flooded region.
Visit one of the surveying websites listed in Table 1.1, and write a brief summary of its
contents. Briefly explain the value of the available information to surveyors.
Responses will vary with time, but below are brief responses to the question
· NGS – control data sheets, CORS data, surveying software
1.19
· USGS – maps, software
· BLM – cadastral maps, software, ephemerides
· U.S. Coast Guard Navigation Center - GPS information
· U.S. Naval Observatory –Notice Advisory for NAVSTAR Users (NANU) and other
GPS related links
· National Society of Professional Surveyors – professional organization for boundary
and construction
· American Association for Geodetic Surveying – professional organization for control
surveying
· Geographic and Land Information Society – professional organization for developers
and users of geographic and land information systems

Loading page 7...

Solution Manual 6
Elementary Surveying: An Introduction to Geomatics
· American Society for Photogrammetry and Remote Sensing – professional
organization for photogrammetry and remote sensing
· The Pearson Prentice Hall publishers access to software and support materials that
accompany this book.
· SaGES – An organization to advance surveying/geomatics education
1.20 Read one of the articles cited in the bibliography for this chapter, or another of your
choosing, that describes an application where satellite surveying methods were used.
Write a brief summary of the article.
Answer will vary.
1.21 Same as Problem 1.20, except the article should be on safety as related to surveying.
Answers will vary but should be related to safety issues in surveying.

Loading page 8...

1.20 Read one of the articles cited in the bibliography for this chapter, or another of your
choosing, that describes an application where satellite surveying methods were used.
Write a brief summary of the article.
Answers will vary. Students should be told to look in trade journals for articles.
1.21 Same as Problem 1.20, except the article should be on safety as related to surveying.
Answers will vary. Students should be told to look in trade journals for articles.

Loading page 9...

Instructor’ Solution Manual 7
Elementary Surveying: An Introduction to Geomatics
2 UNITS, SIGNIFICANT FIGURES, AND FIELD NOTES
2.1 List the five types of measurements that form the basis of traditional plane surveying.
From Section 2.1, they are (1) horizontal angles, (2) horizontal distances, (3) vertical
(altitude or zenith) angles, (4) vertical distances, and (5) slope (or slant) distances.
2.2 Give the basic units that are used in surveying for length, area, volume, and angles in
(a) The English system of units.
From Section 2.2:
length (U.S. survey ft or in some states international foot), area (sq. ft. or acres),
volume (cu. ft. or cu. yd.), angle (sexagesimal)
(b) The SI system of units.
From Section 2.3:
length (m), area (sq. m. or hectare), volume (cu. m.), angle (sexagesimal, grad, or
radian)
2.3 The easting coordinate for a point is 725,316.911 m. What is the coordinate using the
(a) Survey foot definition?
(b) International foot definition?
(c) Why was the survey foot definition maintained in the United States?
(a) 2,379,643.90 sft; 725,316.911 (39.37
12 ) = 2,379,643.899 sft
(b) 2,379,648,66 ft; 725,316.911/0.3048 = 2,379,648.658 ft
(c) From Section 2.2: “Because of the vast number of surveys performed prior to 1959,
it would have been extremely difficult and confusing to change all related
documents and maps that already existed. Thus the old standard, now called the U.S.
survey foot, is still used.”
2.4 Convert the following distances given in meters to U.S. survey feet:
*(a) 4129.574 m 13,548.44 sft
(b) 588.234 m 1929.90 sft
(c) 102,302.103 m 335,636.15 sft

Loading page 10...

8 Solution Manual
Elementary Surveying: An Introduction to Geomatics
2.5 Convert the following distances given in survey feet to meters:
*(a) 537.52 sft 163.836 m
(b) 2,405,687.82 sft 733,255.114 m
(c) 5783.12 sft 1762.699 m or 1762.70 m
2.6 Compute the lengths in survey feet corresponding to the following distances measured
with a Gunter’s chain:
*(a) 10 ch 13 lk 668.6 sft
(b) 56 ch 83 lk 3750.8 sft
(c) 124 ch 35 lk 8207.1 sft
2.7 Express 5,377,700 sft2 in:
*(a) acres 123.46 ac
(b) hectares 49.961 ha
(c) square Gunter’s chains 1234.6 sq. ch.
2.8 Convert 23.4587 ha to:
(a) square survey feet 2,525,070 sft2
(b) acres 57.9676 ac
(b) square Gunter’s chains 579.676 sq. ch
2.9 What are the lengths in feet and decimals for the following distances shown on a
building blueprint:
(a) 12 ft 6-1/4 in. 12.5 ft 601/4/12
(b) 10 ft 6-1/2 in. 10.5 ft 253/2/12

Loading page 11...

Instructor’ Solution Manual 9
Elementary Surveying: An Introduction to Geomatics
(a)* 136.000 grads 𝟏𝟐𝟐°𝟐𝟒′𝟎𝟎"; 2.13628 rad
(b) 115.089 grads 𝟏𝟎𝟑°𝟑𝟒′𝟓𝟎″; 1.80781 rad
(c) 363.809 grads 𝟑𝟐𝟕°𝟐𝟓′𝟒𝟎″; 5.71469 rad
2.14 Give answers to the following problems in the correct number of significant figures:
*(a) sum of 23.15, 0.984, 124, and 12.5 161
(b) sum of 2.115, 23.04, 13.8, and 199.66 238.6
(c) product of 127.08 and 13.1 1660
(d) quotient of 4466.83 divided by 35.61 125.4
2.15 Express the value or answer in powers of 10 to the correct number of significant figures:
(a) 4586.49 4.58679 × 103
(b) 2450 2.45 × 103
(c) square of 199.99 3.9996 × 104
(d) sum of (32.087 + 1.56 + 206.44) divided by 2.3 1.95 × 101
2.16 Convert the angles of a triangle to radians and show a computational check:
*(a) 39°41′54, 91°30'16", 48°47′50" 0.692867, 1.59705, and 0.851672
0.6928666 + 1.597054 + 0.8516721 = 3.14159 check
(b) 96°23'18, 44°56′53", 38°39′49" 1.68229, 0.784492, and 0.674807
1.682294 + 0.784492 + 0.674807 = 3.14159 check
2.17 Why should a ball point pen not be used in field notekeeping?
From Section 2.7: "Books so prepared (with 3h or higher pencil) will withstand damp
weather in the field (or even a soaking) and still be legible, whereas graphite from a
soft pencil, or ink from a pen or ballpoint, leaves an undecipherable smudge under
such circumstances."
2.18 Explain why one number should not be superimposed over another or the lines of

Loading page 12...

10 Solution Manual
Elementary Surveying: An Introduction to Geomatics
Field notes should show the precision of the measurements made to indicate the
accuracy of the measurements.
2.21 Explain the reason for item 7 in Section 2.11 when recording field notes.
In general a sketch will show more than a table of numbers. As the saying goes, “A
picture is worth a thousand words.”
2.22 Explain the reason for item 13 in Section 2.11 when recording field notes.
A standard set of symbols and signs improve the clarity of drawings.
2.23 Explain the reason for item 18 in Section 2.11 when recording field notes.
A zero should be placed before a decimal point for the sake of clarity.
2.24 When should sketches be made instead of just recording data?
Sketches should be made instead of recording data anytime observations need to be
clarified so that the personnel interpreting the notes can have a clear understanding of
the field conditions. This also serves as a reminder of the work performed and any
unusual conditions in later references to the project.
2.25 Justify the requirement to list in a field book the makes and serial numbers of all
instruments used on a survey.
Listing the makes and serial numbers of the instruments used in the survey may help
isolate instrumental errors later when reviewing the project.
2.26 Discuss the advantages of survey controllers that can communicate with several
different types of instruments.
The ability of survey controllers to communicate with several different types of
instruments allows the surveyor to match the specific conditions of the project with the
instrument that this is ideally suited for the job. Thus total station, digital levels, and
GNSS receivers can all be used in a single project.
2.27 Discuss why data should always be backed up at regular intervals.
From Section 2.13, paragraph 1: “At regular intervals, usually at lunchtime and at the
end of a day’s work, or when a survey has been completed, the information stored in
files within a data collector is transferred to another device. This is a safety precaution
to avoid accidentally losing substantial amounts of data.”
2.28 Search the Internet and find at least two sites related to
(a) Manufacturers of survey controllers.
(b) Manufacturers of total stations.
(c) Manufacturers of global navigation satellite system (GNSS) receivers.
Answers should vary with students.

Loading page 13...

Instructor’ Solution Manual 11
Elementary Surveying: An Introduction to Geomatics
2.29 Why do many survey controllers contain digital cameras?
From Section 2.15: “Many modern survey controllers also contain digital cameras that
allow field personnel to capture a digital image of the survey.”
2.30 What are the dangers involved in using a survey controller?
From Section 2.15: “Although survey controllers have many advantages, they also
present some dangers and problems. There is the slight chance, for example, the files
could be accidentally erased through carelessness or lost because of malfunction or
damage to the unit.”
2.31 Describe what is meant by the phrase “field-to-finish.”
From Section 2.15, "The field codes can instruct the drafting software to draw a map
of the data complete with lines, curves and mapping symbols. The process of
collecting field data with field codes that can be interpreted later by software is known
as a field-to-finish survey. This greatly reduces the time needed to complete a project."
2.32 Why are sketches in field books not usually drawn to scale?
This is true since this would require an overwhelming amount of time. The sketches
are simply to provide readers of the notes an approximate visual reference to the
measurements.

Loading page 14...

12 Solution Manual
Elementary Surveying: An Introduction to Geomatics
3 THEORY OF ERRORS IN OBSERVATIONS
3.1 Discuss the difference between an error and a residual.
From Section 3.3, an error is the difference between the observation and its true value,
or 𝐸 = 𝑋 − 𝑋̅ whereas a residual, which is defined in Section 3.11 is the difference
between the mean of a set of observations and the observation or 𝑣 = 𝑀̅ − 𝑀
3.2 Give two examples of (a) direct and (b) indirect measurements.
From Section 3.2: A direct observation is made by applying a measurement instrument
directly to a quantity to be measured and an indirect observation is made by computing
a quantity from direct observations.
Examples should vary by student response.
3.3 Define the term systematic error, and give two surveying examples of a systematic error.
See Section 3.6
3.4 Define the term random error, and give two surveying examples of a random error.
See Section 3.6
3.5 Discuss the difference between accuracy and precision.
From Section 3.7, accuracy is the nearness of the observed quantities to the true value,
which is never known. Precision is the degree of refinement or consistency of a group
of observations and is evaluated on the basis of discrepancy size.
3.6 The observations of 124.53, 124.55, 142.51, and 124.52 are obtained when taping the
length of a line. What should the observer consider doing before a mean length is
determined from the set of observations?
It appears that the observation 142.51 is an outlier and a possible mistake in the data
set. The observer should collect another tape observation of the line and discard the

Loading page 15...

Solution Manual 13
Elementary Surveying: An Introduction to Geomatics
(b) ±0.003 ∑ν2 = 0.000091
(c) ±0.001
3.8 Same as Problem 3.7 but discard only one 65.396 observation.
(a) 65.402 ∑588.616
(b) ±0.003 ∑ν2 = 0.000064
(c) ±0.0009
3.9 Same as Problem 3.7, but discard both 65.396 observations.
(a) 65.402 ∑523.220
(b) ±0.002 ∑ν2 = 0.000030
(c) ±0.0007
3.10 Same as Problem 3.7, but include two additional observations, 65.402 and 65.405.
(a) 65.402 ∑784.819
(b)

Loading page 16...

15 more pages available. Scroll down to load them.

Preview Mode

100%

Study Now!

XY-Copilot AI

Unlimited Access

Secure Payment

Instant Access

24/7 Support

Document Chat

Document Details

Subject

Civil Engineering

Elementary Surveying: An Introduction to Geomatics, 15th Edition Solution Manual

Study Now!

Document Details

Related Documents

Solution Manual For Elementary Surveying: An Introduction To Geomatics, 13th Edition

Solution Manual for Reliability Engineering, 1st Edition

Solution Manual For Steel Structures: Design And Behavior, 5th Edition

Solution Manual for Design Concepts for Engineers, 5th Edition

Dynamics of Structures, 5th Edition Solution Manual

Solution Manual For Structural Analysis, 8th Edition

Solution Manual For Pavement Analysis And Design, 2nd Edition

Solution Manual For Dynamics of Structures, 4th Edition

Solution Manual For Introduction To Geotechnical Engineering, An, 2nd Edition

Structural Analysis, 10th Edition Solution Manual

Company

Explore

Study Tools
