ACI Construction Field Test Exam With Answers (136 Solved Questions)

Preview (5 of 15 Pages)

100%

Purchase to unlock

Loading page image...

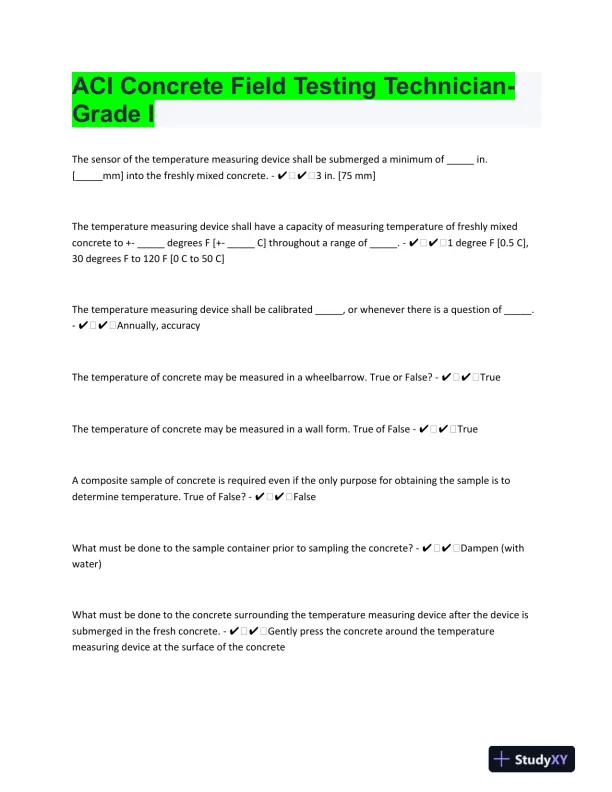

ACI Concrete Field Testing Technician-Grade IThe sensor of the temperature measuring device shall be submerged a minimum of _____ in.[_____mm] into the freshly mixed concrete. -✔✔3 in. [75 mm]The temperature measuring device shall have a capacity of measuring temperature of freshly mixedconcrete to +- _____ degrees F [+- _____ C] throughout a range of _____. -✔✔1 degree F [0.5 C],30 degrees F to 120 F [0 C to 50 C]The temperature measuring device shall be calibrated _____, or whenever there is a question of _____.-✔✔Annually, accuracyThe temperature of concrete may be measured in a wheelbarrow. True or False? -✔✔TrueThe temperature of concrete may be measured in a wall form. True of False -✔✔TrueA composite sample of concrete is required even if the only purpose for obtaining the sample is todetermine temperature. True of False? -✔✔FalseWhat must be done to the sample container prior to sampling the concrete? -✔✔Dampen (withwater)What must be done to the concrete surrounding the temperature measuring device after the device issubmerged in the fresh concrete. -✔✔Gently press the concrete around the temperaturemeasuring device at the surface of the concrete

Loading page image...

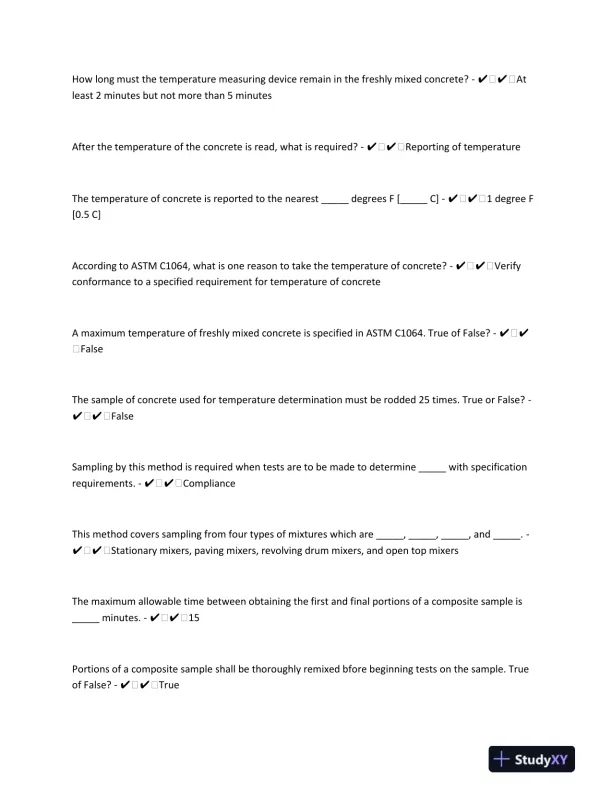

How long must the temperature measuring device remain in the freshly mixed concrete? -✔✔Atleast 2 minutes but not more than 5 minutesAfter the temperature of the concrete is read, what is required? -✔✔Reporting of temperatureThe temperature of concrete is reported to the nearest _____ degrees F [_____ C] -✔✔1 degree F[0.5 C]According to ASTM C1064, what is one reason to take the temperature of concrete? -✔✔Verifyconformance to a specified requirement for temperature of concreteA maximum temperature of freshly mixed concrete is specified in ASTM C1064. True of False? -✔✔FalseThe sample of concrete used for temperature determination must be rodded 25 times. True or False? -✔✔FalseSampling by this method is required when tests are to be made to determine _____ with specificationrequirements. -✔✔ComplianceThis method covers sampling from four types of mixtures which are _____, _____, _____, and _____. -✔✔Stationary mixers, paving mixers, revolving drum mixers, and open top mixersThe maximum allowable time between obtaining the first and final portions of a composite sample is_____ minutes. -✔✔15Portions of a composite sample shall be thoroughly remixed bfore beginning tests on the sample. Trueof False? -✔✔True

Loading page image...

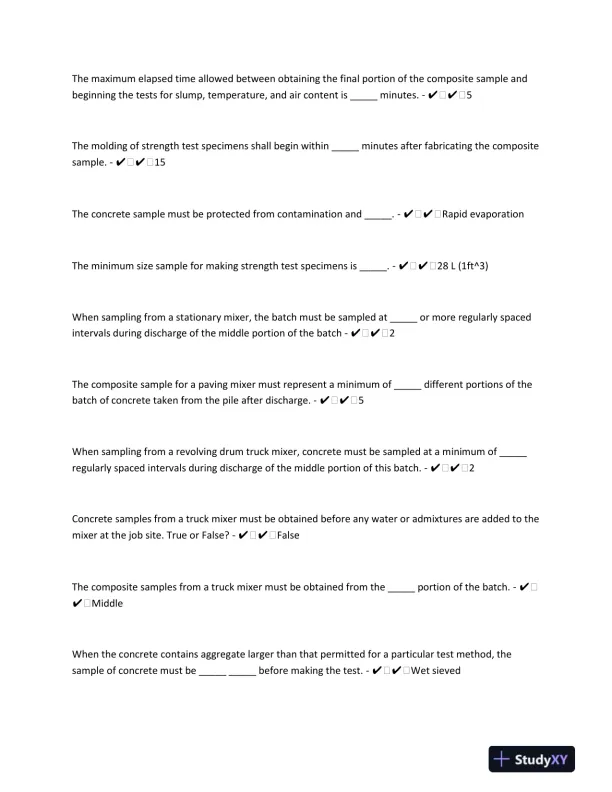

The maximum elapsed time allowed between obtaining the final portion of the composite sample andbeginning the tests for slump, temperature, and air content is _____ minutes. -✔✔5The molding of strength test specimens shall begin within _____ minutes after fabricating the compositesample. -✔✔15The concrete sample must be protected from contamination and _____. -✔✔Rapid evaporationThe minimum size sample for making strength test specimens is _____. -✔✔28 L (1ft^3)When sampling from a stationary mixer, the batch must be sampled at _____ or more regularly spacedintervals during discharge of the middle portion of the batch -✔✔2The composite sample for a paving mixer must represent a minimum of _____ different portions of thebatch of concrete taken from the pile after discharge. -✔✔5When sampling from a revolving drum truck mixer, concrete must be sampled at a minimum of _____regularly spaced intervals during discharge of the middle portion of this batch. -✔✔2Concrete samples from a truck mixer must be obtained before any water or admixtures are added to themixer at the job site. True or False? -✔✔FalseThe composite samples from a truck mixer must be obtained from the _____ portion of the batch. -✔✔MiddleWhen the concrete contains aggregate larger than that permitted for a particular test method, thesample of concrete must be _____ _____ before making the test. -✔✔Wet sieved

Loading page image...

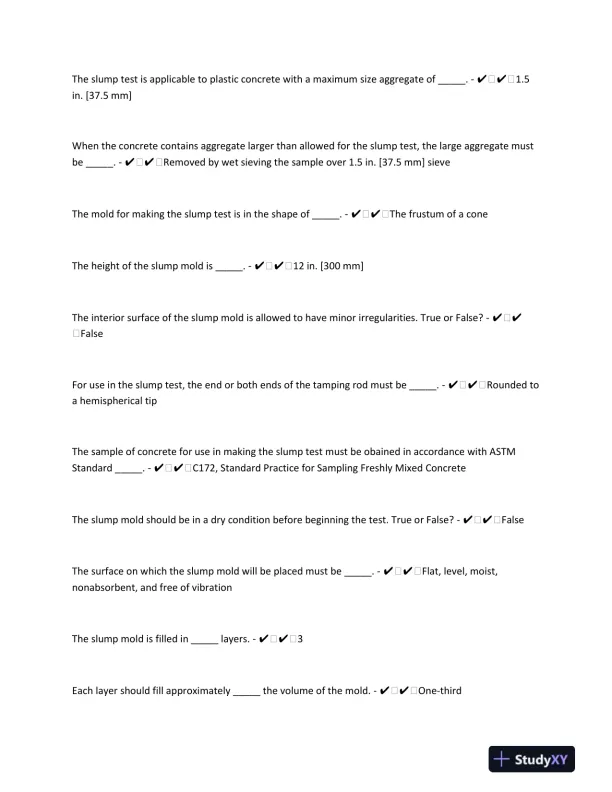

The slump test is applicable to plastic concrete with a maximum size aggregate of _____. -✔✔1.5in. [37.5 mm]When the concrete contains aggregate larger than allowed for the slump test, the large aggregate mustbe _____. -✔✔Removed by wet sieving the sample over 1.5 in. [37.5 mm] sieveThe mold for making the slump test is in the shape of _____. -✔✔The frustum of a coneThe height of the slump mold is _____. -✔✔12 in. [300 mm]The interior surface of the slump mold is allowed to have minor irregularities. True or False? -✔✔FalseFor use in the slump test, the end or both ends of the tamping rod must be _____. -✔✔Rounded toa hemispherical tipThe sample of concrete for use in making the slump test must be obained in accordance with ASTMStandard _____. -✔✔C172, Standard Practice for Sampling Freshly Mixed ConcreteThe slump mold should be in a dry condition before beginning the test. True or False? -✔✔FalseThe surface on which the slump mold will be placed must be _____. -✔✔Flat, level, moist,nonabsorbent, and free of vibrationThe slump mold is filled in _____ layers. -✔✔3Each layer should fill approximately _____ the volume of the mold. -✔✔One-third

Preview Mode

This document has 15 pages. Sign in to access the full document!
