Digital Logic Design and Boolean Algebra Assignment

An assignment covering Boolean algebra and digital logic circuit design principles.

Evelyn Morris
Contributor
4.7
42
5 months ago
Preview (4 of 12 Pages)
100%
Purchase to unlock

Page 1

Digital Logic Design and Boolean Algebra Assignment - Page 1 preview image

Loading page image...

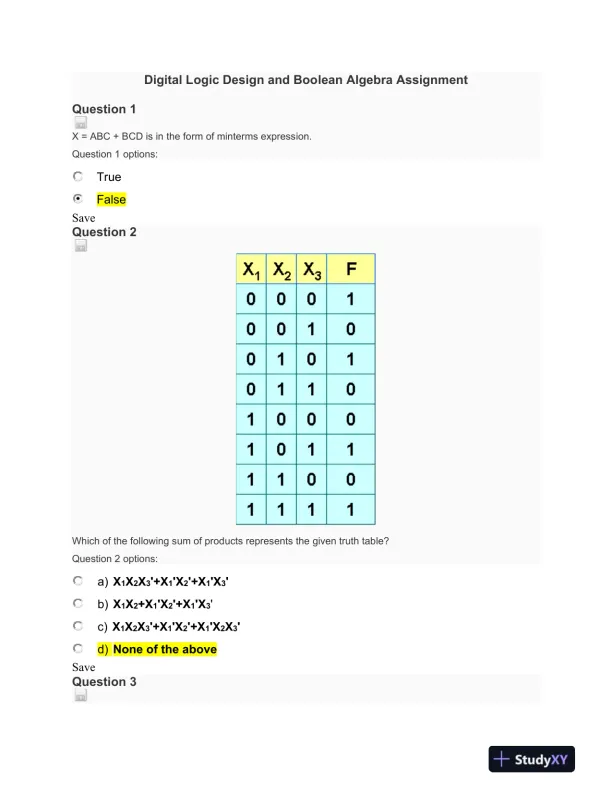

Digital Logic Design and Boolean Algebra AssignmentQuestion 1X = ABC + BCD is in the form of minterms expression.Question 1 options:TrueFalseSaveQuestion 2Which of the following sum of products represents the given truthtable?Question 2 options:a)X1X2X3'+X1'X2'+X1'X3'b)X1X2+X1'X2'+X1'X3'c)X1X2X3'+X1'X2'+X1'X2X3'd)None of the aboveSaveQuestion 3

Page 2

Digital Logic Design and Boolean Algebra Assignment - Page 2 preview image

Loading page image...

Page 3

Digital Logic Design and Boolean Algebra Assignment - Page 3 preview image

Loading page image...

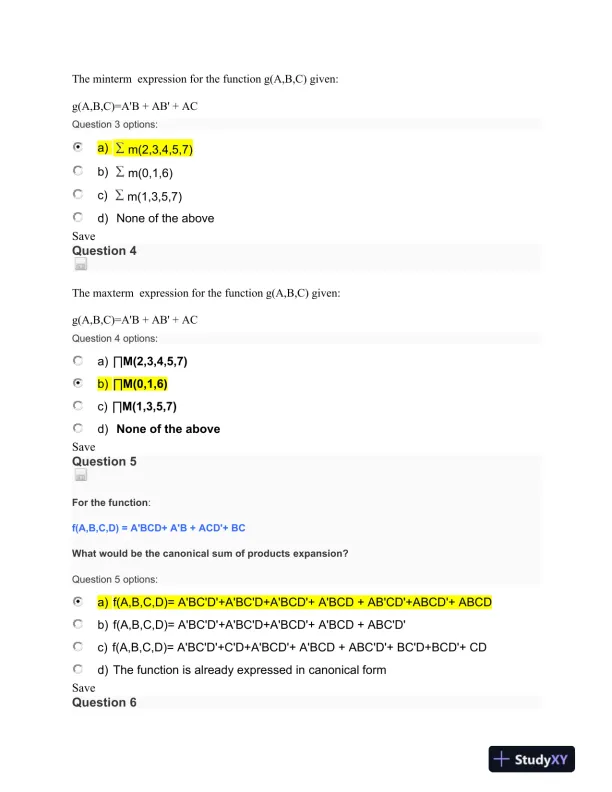

The mintermexpression for thefunctiong(A,B,C) given:g(A,B,C)=A'B + AB' + ACQuestion 3 options:a)m(2,3,4,5,7)b)m(0,1,6)c)m(1,3,5,7)d)None of the aboveSaveQuestion 4The maxtermexpression for thefunctiong(A,B,C) given:g(A,B,C)=A'B + AB' + ACQuestion 4 options:a)∏M(2,3,4,5,7)b)∏M(0,1,6)c)∏M(1,3,5,7)d)None of the aboveSaveQuestion 5For the function:f(A,B,C,D) = A'BCD+ A'B + ACD'+ BCWhat would be the canonical sum of products expansion?Question 5 options:a)f(A,B,C,D)= A'BC'D'+A'BC'D+A'BCD'+ A'BCD + AB'CD'+ABCD'+ ABCDb)f(A,B,C,D)= A'BC'D'+A'BC'D+A'BCD'+ A'BCD + ABC'D'c)f(A,B,C,D)= A'BC'D'+C'D+A'BCD'+ A'BCD + ABC'D'+ BC'D+BCD'+ CDd)The function is already expressed in canonical formSaveQuestion 6

Page 4

Digital Logic Design and Boolean Algebra Assignment - Page 4 preview image

Loading page image...

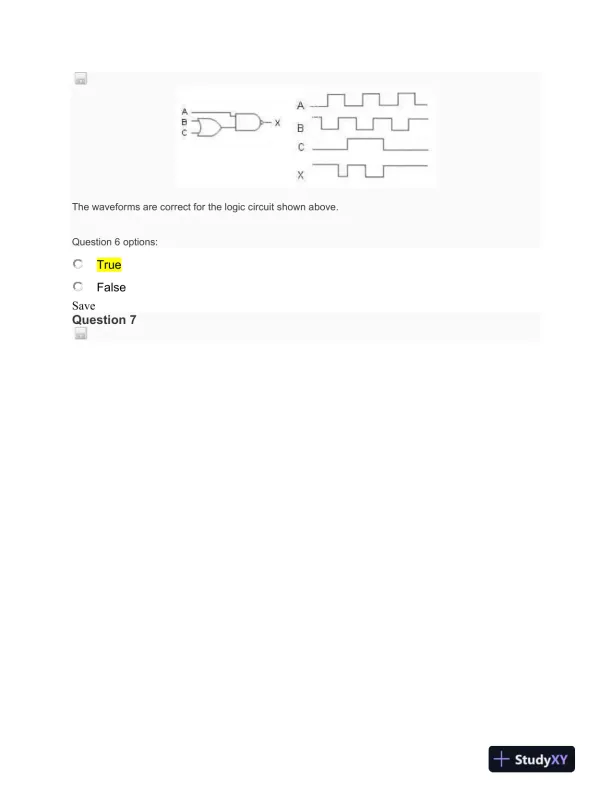

The waveforms are correct for the logic circuit shown above.Question 6 options:TrueFalseSaveQuestion 7
Preview Mode

This document has 12 pages. Sign in to access the full document!
