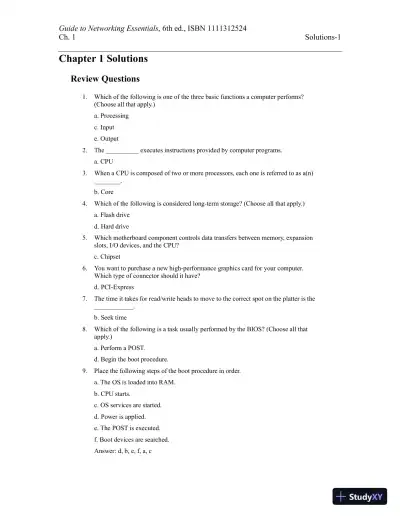

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 1 Solutions-1
Chapter 1 Solutions
Review Questions
1. Which of the following is one of the three basic functions a computer performs?
(Choose all that apply.)
a. Processing
c. Input
e. Output
2. The __________ executes instructions provided by computer programs.
a. CPU
3. When a CPU is composed of two or more processors, each one is referred to as a(n)
________.
b. Core
4. Which of the following is considered long-term storage? (Choose all that apply.)
a. Flash drive
d. Hard drive
5. Which motherboard component controls data transfers between memory, expansion
slots, I/O devices, and the CPU?
c. Chipset
6. You want to purchase a new high-performance graphics card for your computer.
Which type of connector should it have?
d. PCI-Express
7. The time it takes for read/write heads to move to the correct spot on the platter is the
____________.
b. Seek time
8. Which of the following is a task usually performed by the BIOS? (Choose all that
apply.)
a. Perform a POST.
d. Begin the boot procedure.
9. Place the following steps of the boot procedure in order.
a. The OS is loaded into RAM.
b. CPU starts.
c. OS services are started.
d. Power is applied.
e. The POST is executed.
f. Boot devices are searched.
Answer: d, b, e, f, a, c

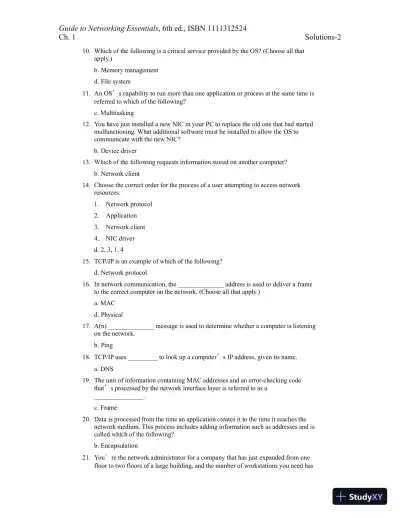

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 1 Solutions-2
10. Which of the following is a critical service provided by the OS? (Choose all that
apply.)
b. Memory management
d. File system
11. An OS’s capability to run more than one application or process at the same time is
referred to which of the following?
c. Multitasking
12. You have just installed a new NIC in your PC to replace the old one that had started
malfunctioning. What additional software must be installed to allow the OS to
communicate with the new NIC?
b. Device driver
13. Which of the following requests information stored on another computer?
b. Network client
14. Choose the correct order for the process of a user attempting to access network
resources:
1. Network protocol
2. Application
3. Network client
4. NIC driver
d. 2, 3, 1, 4
15. TCP/IP is an example of which of the following?
d. Network protocol
16. In network communication, the ______________ address is used to deliver a frame
to the correct computer on the network. (Choose all that apply.)
a. MAC
d. Physical
17. A(n) ______________ message is used to determine whether a computer is listening
on the network.
b. Ping
18. TCP/IP uses _________ to look up a computer’s IP address, given its name.
a. DNS
19. The unit of information containing MAC addresses and an error-checking code
that’s processed by the network interface layer is referred to as a
_______________.
c. Frame
20. Data is processed from the time an application creates it to the time it reaches the
network medium. This process includes adding information such as addresses and is
called which of the following?
b. Encapsulation
21. You’re the network administrator for a company that has just expanded from one
floor to two floors of a large building, and the number of workstations you need has

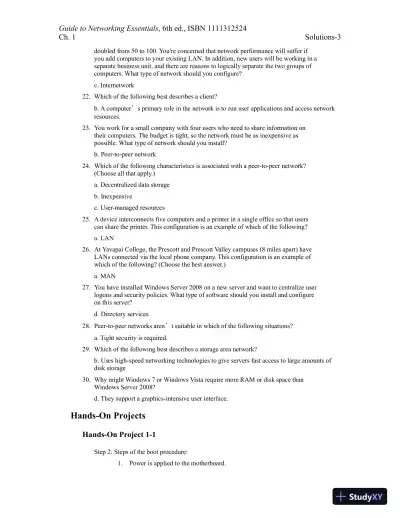

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 1 Solutions-3
doubled from 50 to 100. You're concerned that network performance will suffer if
you add computers to your existing LAN. In addition, new users will be working in a
separate business unit, and there are reasons to logically separate the two groups of
computers. What type of network should you configure?
c. Internetwork
22. Which of the following best describes a client?
b. A computer’s primary role in the network is to run user applications and access network
resources.
23. You work for a small company with four users who need to share information on
their computers. The budget is tight, so the network must be as inexpensive as
possible. What type of network should you install?
b. Peer-to-peer network
24. Which of the following characteristics is associated with a peer-to-peer network?
(Choose all that apply.)
a. Decentralized data storage
b. Inexpensive
c. User-managed resources
25. A device interconnects five computers and a printer in a single office so that users
can share the printer. This configuration is an example of which of the following?
a. LAN
26. At Yavapai College, the Prescott and Prescott Valley campuses (8 miles apart) have
LANs connected via the local phone company. This configuration is an example of
which of the following? (Choose the best answer.)
a. MAN
27. You have installed Windows Server 2008 on a new server and want to centralize user
logons and security policies. What type of software should you install and configure
on this server?
d. Directory services
28. Peer-to-peer networks aren’t suitable in which of the following situations?
a. Tight security is required.
29. Which of the following best describes a storage area network?
b. Uses high-speed networking technologies to give servers fast access to large amounts of
disk storage
30. Why might Windows 7 or Windows Vista require more RAM or disk space than
Windows Server 2008?
d. They support a graphics-intensive user interface.
Hands-On Projects
Hands-On Project 1-1
Step 2: Steps of the boot procedure:
1. Power is applied to the motherboard.

Loading page 4...

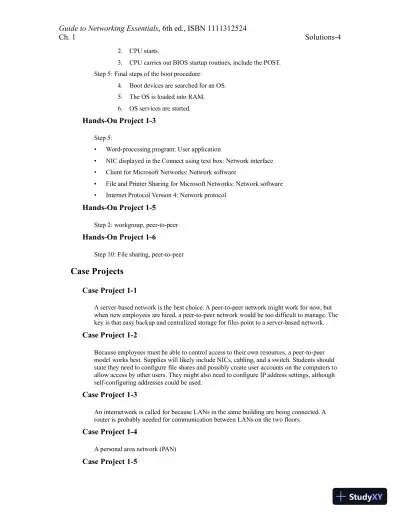

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 1 Solutions-4
2. CPU starts.
3. CPU carries out BIOS startup routines, include the POST.
Step 5: Final steps of the boot procedure:
4. Boot devices are searched for an OS.
5. The OS is loaded into RAM.
6. OS services are started.
Hands-On Project 1-3
Step 5:
• Word-processing program: User application
• NIC displayed in the Connect using text box: Network interface
• Client for Microsoft Networks: Network software
• File and Printer Sharing for Microsoft Networks: Network software
• Internet Protocol Version 4: Network protocol
Hands-On Project 1-5
Step 2: workgroup, peer-to-peer
Hands-On Project 1-6
Step 10: File sharing, peer-to-peer
Case Projects
Case Project 1-1
A server-based network is the best choice. A peer-to-peer network might work for now, but
when new employees are hired, a peer-to-peer network would be too difficult to manage. The
key is that easy backup and centralized storage for files point to a server-based network.
Case Project 1-2
Because employees must be able to control access to their own resources, a peer-to-peer
model works best. Supplies will likely include NICs, cabling, and a switch. Students should
state they need to configure file shares and possibly create user accounts on the computers to
allow access by other users. They might also need to configure IP address settings, although
self-configuring addresses could be used.
Case Project 1-3
An internetwork is called for because LANs in the same building are being connected. A
router is probably needed for communication between LANs on the two floors.
Case Project 1-4
A personal area network (PAN)
Case Project 1-5

Loading page 5...

Loading page 6...

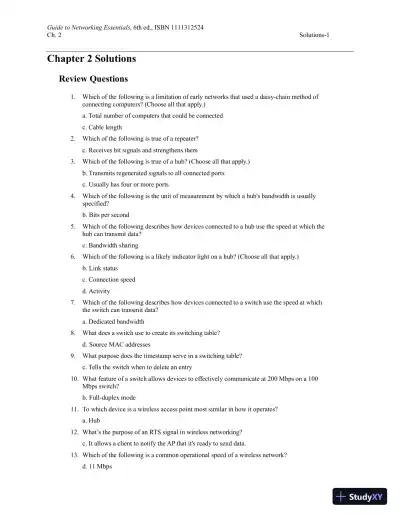

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 2 Solutions-1
Chapter 2 Solutions
Review Questions
1. Which of the following is a limitation of early networks that used a daisy-chain method of
connecting computers? (Choose all that apply.)
a. Total number of computers that could be connected
c. Cable length
2. Which of the following is true of a repeater?
c. Receives bit signals and strengthens them
3. Which of the following is true of a hub? (Choose all that apply.)
b. Transmits regenerated signals to all connected ports
c. Usually has four or more ports
4. Which of the following is the unit of measurement by which a hub's bandwidth is usually
specified?
b. Bits per second
5. Which of the following describes how devices connected to a hub use the speed at which the
hub can transmit data?
c. Bandwidth sharing
6. Which of the following is a likely indicator light on a hub? (Choose all that apply.)
b. Link status
c. Connection speed
d. Activity
7. Which of the following describes how devices connected to a switch use the speed at which
the switch can transmit data?
a. Dedicated bandwidth
8. What does a switch use to create its switching table?
d. Source MAC addresses
9. What purpose does the timestamp serve in a switching table?
c. Tells the switch when to delete an entry
10. What feature of a switch allows devices to effectively communicate at 200 Mbps on a 100
Mbps switch?
b. Full-duplex mode
11. To which device is a wireless access point most similar in how it operates?
a. Hub
12. What’s the purpose of an RTS signal in wireless networking?
c. It allows a client to notify the AP that it's ready to send data.
13. Which of the following is a common operational speed of a wireless network?
d. 11 Mbps

Loading page 7...

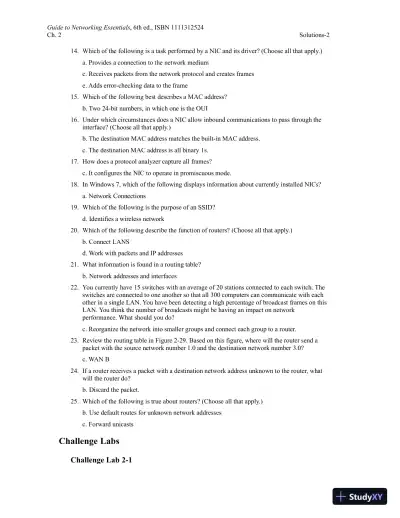

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 2 Solutions-2
14. Which of the following is a task performed by a NIC and its driver? (Choose all that apply.)
a. Provides a connection to the network medium
c. Receives packets from the network protocol and creates frames
e. Adds error-checking data to the frame
15. Which of the following best describes a MAC address?
b. Two 24-bit numbers, in which one is the OUI
16. Under which circumstances does a NIC allow inbound communications to pass through the
interface? (Choose all that apply.)
b. The destination MAC address matches the built-in MAC address.
c. The destination MAC address is all binary 1s.
17. How does a protocol analyzer capture all frames?
c. It configures the NIC to operate in promiscuous mode.
18. In Windows 7, which of the following displays information about currently installed NICs?
a. Network Connections
19. Which of the following is the purpose of an SSID?
d. Identifies a wireless network
20. Which of the following describe the function of routers? (Choose all that apply.)
b. Connect LANS
d. Work with packets and IP addresses
21. What information is found in a routing table?
b. Network addresses and interfaces
22. You currently have 15 switches with an average of 20 stations connected to each switch. The
switches are connected to one another so that all 300 computers can communicate with each
other in a single LAN. You have been detecting a high percentage of broadcast frames on this
LAN. You think the number of broadcasts might be having an impact on network
performance. What should you do?
c. Reorganize the network into smaller groups and connect each group to a router.
23. Review the routing table in Figure 2-29. Based on this figure, where will the router send a
packet with the source network number 1.0 and the destination network number 3.0?
c. WAN B
24. If a router receives a packet with a destination network address unknown to the router, what
will the router do?
b. Discard the packet.
25. Which of the following is true about routers? (Choose all that apply.)
b. Use default routes for unknown network addresses
c. Forward unicasts
Challenge Labs
Challenge Lab 2-1

Loading page 8...

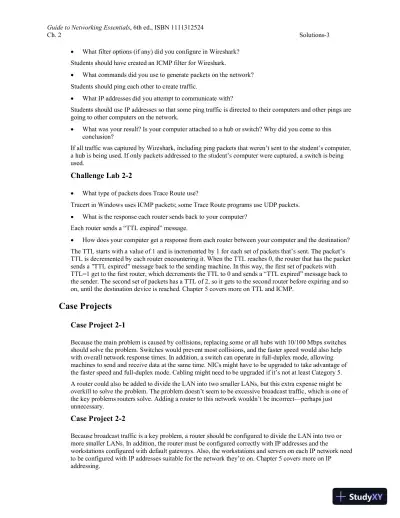

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 2 Solutions-3
 What filter options (if any) did you configure in Wireshark?
Students should have created an ICMP filter for Wireshark.
 What commands did you use to generate packets on the network?
Students should ping each other to create traffic.
 What IP addresses did you attempt to communicate with?
Students should use IP addresses so that some ping traffic is directed to their computers and other pings are
going to other computers on the network.
 What was your result? Is your computer attached to a hub or switch? Why did you come to this
conclusion?
If all traffic was captured by Wireshark, including ping packets that weren’t sent to the student’s computer,
a hub is being used. If only packets addressed to the student’s computer were captured, a switch is being
used.
Challenge Lab 2-2
 What type of packets does Trace Route use?
Tracert in Windows uses ICMP packets; some Trace Route programs use UDP packets.
 What is the response each router sends back to your computer?
Each router sends a “TTL expired” message.
 How does your computer get a response from each router between your computer and the destination?
The TTL starts with a value of 1 and is incremented by 1 for each set of packets that’s sent. The packet’s
TTL is decremented by each router encountering it. When the TTL reaches 0, the router that has the packet
sends a "TTL expired" message back to the sending machine. In this way, the first set of packets with
TTL=1 get to the first router, which decrements the TTL to 0 and sends a “TTL expired” message back to
the sender. The second set of packets has a TTL of 2, so it gets to the second router before expiring and so
on, until the destination device is reached. Chapter 5 covers more on TTL and ICMP.
Case Projects
Case Project 2-1
Because the main problem is caused by collisions, replacing some or all hubs with 10/100 Mbps switches
should solve the problem. Switches would prevent most collisions, and the faster speed would also help
with overall network response times. In addition, a switch can operate in full-duplex mode, allowing
machines to send and receive data at the same time. NICs might have to be upgraded to take advantage of
the faster speed and full-duplex mode. Cabling might need to be upgraded if it’s not at least Category 5.
A router could also be added to divide the LAN into two smaller LANs, but this extra expense might be
overkill to solve the problem. The problem doesn’t seem to be excessive broadcast traffic, which is one of
the key problems routers solve. Adding a router to this network wouldn’t be incorrect—perhaps just
unnecessary.
Case Project 2-2
Because broadcast traffic is a key problem, a router should be configured to divide the LAN into two or
more smaller LANs. In addition, the router must be configured correctly with IP addresses and the
workstations configured with default gateways. Also, the workstations and servers on each IP network need
to be configured with IP addresses suitable for the network they’re on. Chapter 5 covers more on IP
addressing.

Loading page 9...

Loading page 10...

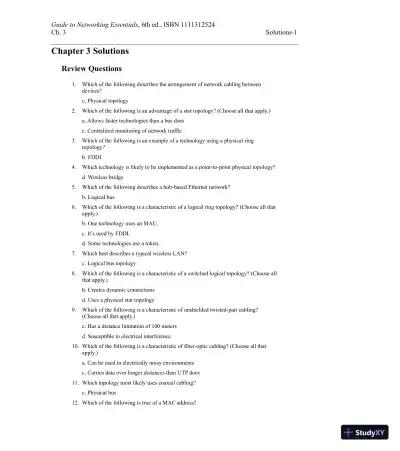

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 3 Solutions-1
Chapter 3 Solutions
Review Questions
1. Which of the following describes the arrangement of network cabling between
devices?
c. Physical topology
2. Which of the following is an advantage of a star topology? (Choose all that apply.)
a. Allows faster technologies than a bus does
c. Centralized monitoring of network traffic
3. Which of the following is an example of a technology using a physical ring
topology?
b. FDDI
4. Which technology is likely to be implemented as a point-to-point physical topology?
d. Wireless bridge
5. Which of the following describes a hub-based Ethernet network?
b. Logical bus
6. Which of the following is a characteristic of a logical ring topology? (Choose all that
apply.)
b. One technology uses an MAU.
c. It’s used by FDDI.
d. Some technologies use a token.
7. Which best describes a typical wireless LAN?
c. Logical bus topology
8. Which of the following is a characteristic of a switched logical topology? (Choose all
that apply.)
b. Creates dynamic connections
d. Uses a physical star topology
9. Which of the following is a characteristic of unshielded twisted-pair cabling?
(Choose all that apply.)
c. Has a distance limitation of 100 meters
d. Susceptible to electrical interference
10. Which of the following is a characteristic of fiber-optic cabling? (Choose all that
apply.)
a. Can be used in electrically noisy environments
c. Carries data over longer distances than UTP does
11. Which topology most likely uses coaxial cabling?
c. Physical bus
12. Which of the following is true of a MAC address?

Loading page 11...

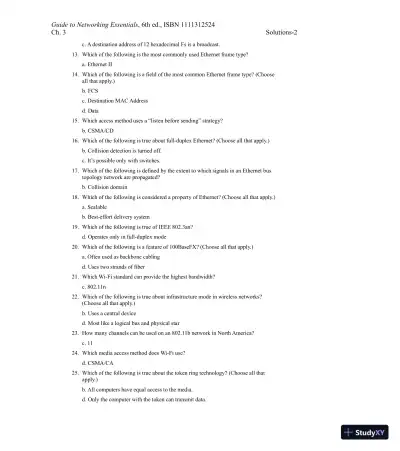

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 3 Solutions-2
c. A destination address of 12 hexadecimal Fs is a broadcast.
13. Which of the following is the most commonly used Ethernet frame type?
a. Ethernet II
14. Which of the following is a field of the most common Ethernet frame type? (Choose
all that apply.)
b. FCS
c. Destination MAC Address
d. Data
15. Which access method uses a “listen before sending” strategy?
b. CSMA/CD
16. Which of the following is true about full-duplex Ethernet? (Choose all that apply.)
b. Collision detection is turned off.
c. It’s possible only with switches.
17. Which of the following is defined by the extent to which signals in an Ethernet bus
topology network are propagated?
b. Collision domain
18. Which of the following is considered a property of Ethernet? (Choose all that apply.)
a. Scalable
b. Best-effort delivery system
19. Which of the following is true of IEEE 802.3an?
d. Operates only in full-duplex mode
20. Which of the following is a feature of 100BaseFX? (Choose all that apply.)
a. Often used as backbone cabling
d. Uses two strands of fiber
21. Which Wi-Fi standard can provide the highest bandwidth?
c. 802.11n
22. Which of the following is true about infrastructure mode in wireless networks?
(Choose all that apply.)
b. Uses a central device
d. Most like a logical bus and physical star
23. How many channels can be used on an 802.11b network in North America?
c. 11
24. Which media access method does Wi-Fi use?
d. CSMA/CA
25. Which of the following is true about the token ring technology? (Choose all that
apply.)
b. All computers have equal access to the media.
d. Only the computer with the token can transmit data.

Loading page 12...

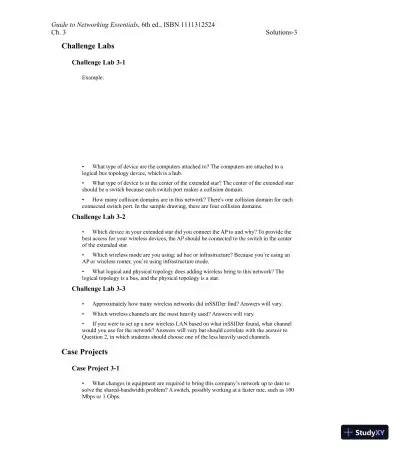

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 3 Solutions-3
Challenge Labs
Challenge Lab 3-1
Example:
• What type of device are the computers attached to? The computers are attached to a
logical bus topology device, which is a hub.
• What type of device is at the center of the extended star? The center of the extended star
should be a switch because each switch port makes a collision domain.
• How many collision domains are in this network? There's one collision domain for each
connected switch port. In the sample drawing, there are four collision domains.
Challenge Lab 3-2
• Which device in your extended star did you connect the AP to and why? To provide the
best access for your wireless devices, the AP should be connected to the switch in the center
of the extended star.
• Which wireless mode are you using: ad hoc or infrastructure? Because you’re using an
AP or wireless router, you’re using infrastructure mode.
• What logical and physical topology does adding wireless bring to this network? The
logical topology is a bus, and the physical topology is a star.
Challenge Lab 3-3
• Approximately how many wireless networks did inSSIDer find? Answers will vary.
• Which wireless channels are the most heavily used? Answers will vary.
• If you were to set up a new wireless LAN based on what inSSIDer found, what channel
would you use for the network? Answers will vary but should correlate with the answer to
Question 2, in which students should choose one of the less heavily used channels.
Case Projects
Case Project 3-1
• What changes in equipment are required to bring this company’s network up to date to
solve the shared-bandwidth problem? A switch, possibly working at a faster rate, such as 100
Mbps or 1 Gbps.

Loading page 13...

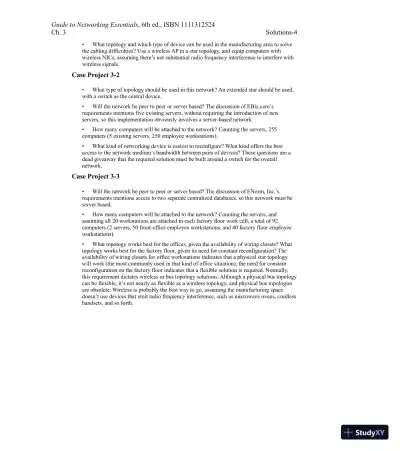

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 3 Solutions-4
• What topology and which type of device can be used in the manufacturing area to solve
the cabling difficulties? Use a wireless AP in a star topology, and equip computers with
wireless NICs, assuming there’s not substantial radio frequency interference to interfere with
wireless signals.
Case Project 3-2
• What type of topology should be used in this network? An extended star should be used,
with a switch as the central device.
• Will the network be peer to peer or server based? The discussion of EBiz.com’s
requirements mentions five existing servers, without requiring the introduction of new
servers, so this implementation obviously involves a server-based network.
• How many computers will be attached to the network? Counting the servers, 255
computers (5 existing servers, 250 employee workstations).
• What kind of networking device is easiest to reconfigure? What kind offers the best
access to the network medium’s bandwidth between pairs of devices? These questions are a
dead giveaway that the required solution must be built around a switch for the overall
network.
Case Project 3-3
• Will the network be peer to peer or server based? The discussion of ENorm, Inc.’s
requirements mentions access to two separate centralized databases, so this network must be
server based.
• How many computers will be attached to the network? Counting the servers, and
assuming all 20 workstations are attached in each factory floor work cell, a total of 92
computers (2 servers, 50 front-office employee workstations, and 40 factory floor employee
workstations).
• What topology works best for the offices, given the availability of wiring closets? What
topology works best for the factory floor, given its need for constant reconfiguration? The
availability of wiring closets for office workstations indicates that a physical star topology
will work (the most commonly used in that kind of office situation); the need for constant
reconfiguration on the factory floor indicates that a flexible solution is required. Normally,
this requirement dictates wireless or bus topology solutions. Although a physical bus topology
can be flexible, it’s not nearly as flexible as a wireless topology, and physical bus topologies
are obsolete. Wireless is probably the best way to go, assuming the manufacturing space
doesn’t use devices that emit radio frequency interference, such as microwave ovens, cordless
handsets, and so forth.

Loading page 14...

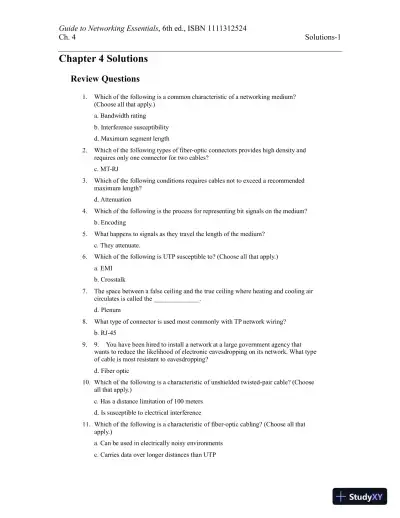

Guide to Networking Essentials, 6th ed., ISBN 1111312524
Ch. 4 Solutions-1
Chapter 4 Solutions
Review Questions
1. Which of the following is a common characteristic of a networking medium?
(Choose all that apply.)
a. Bandwidth rating
b. Interference susceptibility
d. Maximum segment length
2. Which of the following types of fiber-optic connectors provides high density and
requires only one connector for two cables?
c. MT-RJ
3. Which of the following conditions requires cables not to exceed a recommended
maximum length?
d. Attenuation
4. Which of the following is the process for representing bit signals on the medium?
b. Encoding
5. What happens to signals as they travel the length of the medium?
c. They attenuate.
6. Which of the following is UTP susceptible to? (Choose all that apply.)
a. EMI
b. Crosstalk
7. The space between a false ceiling and the true ceiling where heating and cooling air
circulates is called the ______________.
d. Plenum
8. What type of connector is used most commonly with TP network wiring?
b. RJ-45
9. 9. You have been hired to install a network at a large government agency that
wants to reduce the likelihood of electronic eavesdropping on its network. What type
of cable is most resistant to eavesdropping?
d. Fiber optic
10. Which of the following is a characteristic of unshielded twisted-pair cable? (Choose
all that apply.)
c. Has a distance limitation of 100 meters
d. Is susceptible to electrical interference
11. Which of the following is a characteristic of fiber-optic cabling? (Choose all that
apply.)
a. Can be used in electrically noisy environments
c. Carries data over longer distances than UTP

Loading page 15...

14 more pages available. Scroll down to load them.

Preview Mode

100%

Study Now!

XY-Copilot AI

Unlimited Access

Secure Payment

Instant Access

24/7 Support

AI Assistant

Document Details

Subject

Information Technology

Guide To Networking Essentials, 7th Edition Solution Manual

Study Now!

Document Details

Related Documents

Guide To Networking Essentials, 7th Edition Lecture Notes

VCP-DCV for vSphere 7.x Exam 2V0-21.20 Official Cert Guide, 4th edition (2021)

Test Bank for Managing and Using Information Systems: A Strategic Approach, 7th Edition (Chapters 1-13)

A+ Guide to Hardware, 9th Edition Test Bank

Test Bank for Essentials of MIS, 12th Edition

Test Bank for Introduction to Android Application Development Android Essentials, 5th Edition

Solution Manual for Essentials of System Analysis and Design, 4th Edition

Solution Manual for Introduction to Information Systems: People, Technology and Processes, 3rd Edition

Solution Manual for Fluency With Information Technology, 7th Edition

Solution Manual for Concepts of Programming Languages, 12th Edition
